HYDRAULIC PULLER(4T)
Regular price
$718.21
Regular price
Sale
$756.01
Sale price
$718.21
Couldn't load pickup availability
- Four stages of foldable & removable handle saves the handle force during operation.
- 360˚ Rotary Socket.
- Self-contained hydraulic pump and puller body with integral valve.
- Heat treated & chrome plated hydraulic cylinder rod provides linear force.
- Easily release valve.
- Spring loaded live centering nut for easy job (removable).
- 2/3 jaws combination puller cross head with manganous-phosphate plated for rust proof durability.
- Heat treated forged alloy steel cross bolts & jaws with manganous-phosphate plated for rust proof and long life service.
| 編號Item | Capacity | Reach (mm) | Spread (mm) | Stroke(mm) | Pump Tip (mm) | Jaw Tip (mm) | Weight (Kg) | |||||||
| A | B | C | D | H | E | F | G | A | B | C | I | |||

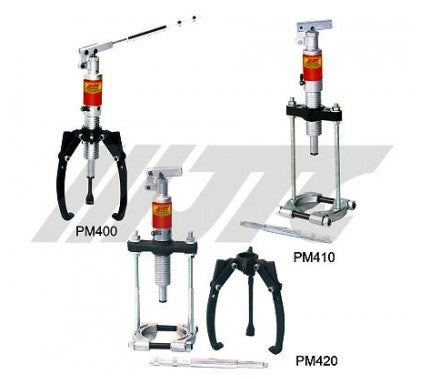

| PM400 | 4 TON | 185 | 70 | 75 | 255 | 60 | 42 | 22 | 84 | 11 | 6 | 22 | 32 | 6.7 |
| PM410 | 4 TON | 250 | - | 55 | 110 | 60 | 42 | 22 | 84 | - | - | - | - | 7.6 |
| PM420 | 4 TON | 185/250 | 70 | 75/55 | 255/110 | 60 | 42 | 22 | 84 | 11 | 6 | 22 | 32 | 11 |
